Create a new table

To create a table in the Database Designer, perform the following:

  1. Start with an empty table

    A table is a container for a specific type of data, like the information for products or customers.

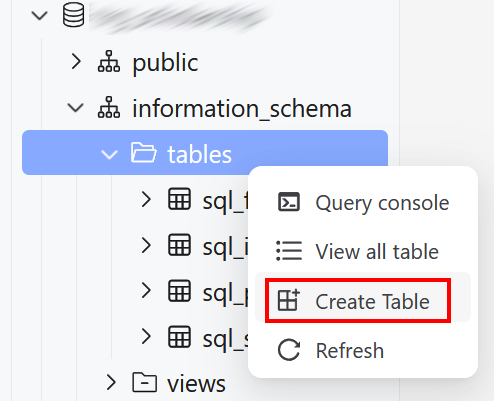

    1. After connecting to your database, on the left side panel, right-click the Tables section within the schema and select Create Table.

      Create Table option

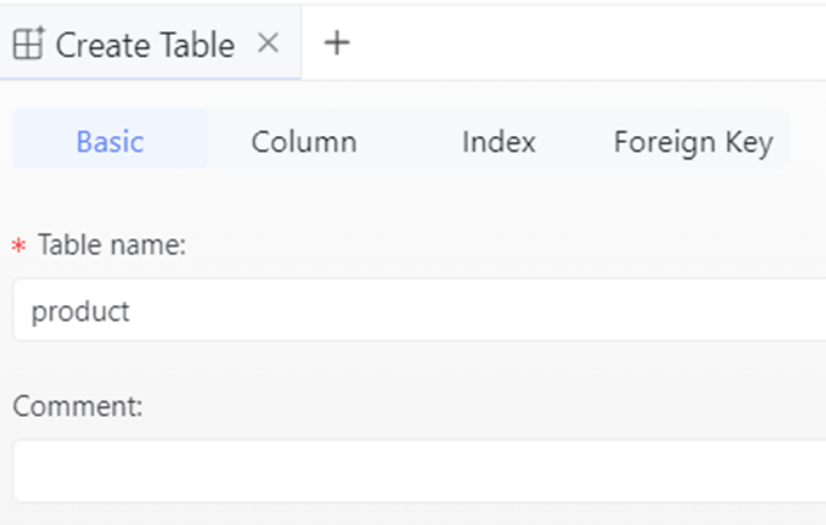

    2. On the right configuration panel under the Basic tab, enter a descriptive name for the table (e.g., product).

      Create Table option

  2. Define columns and constraints

    Columns are the individual fields that make up a table. This is where definition of the structure of the data may be created.

    1. Select the Column tab on the right side panel.

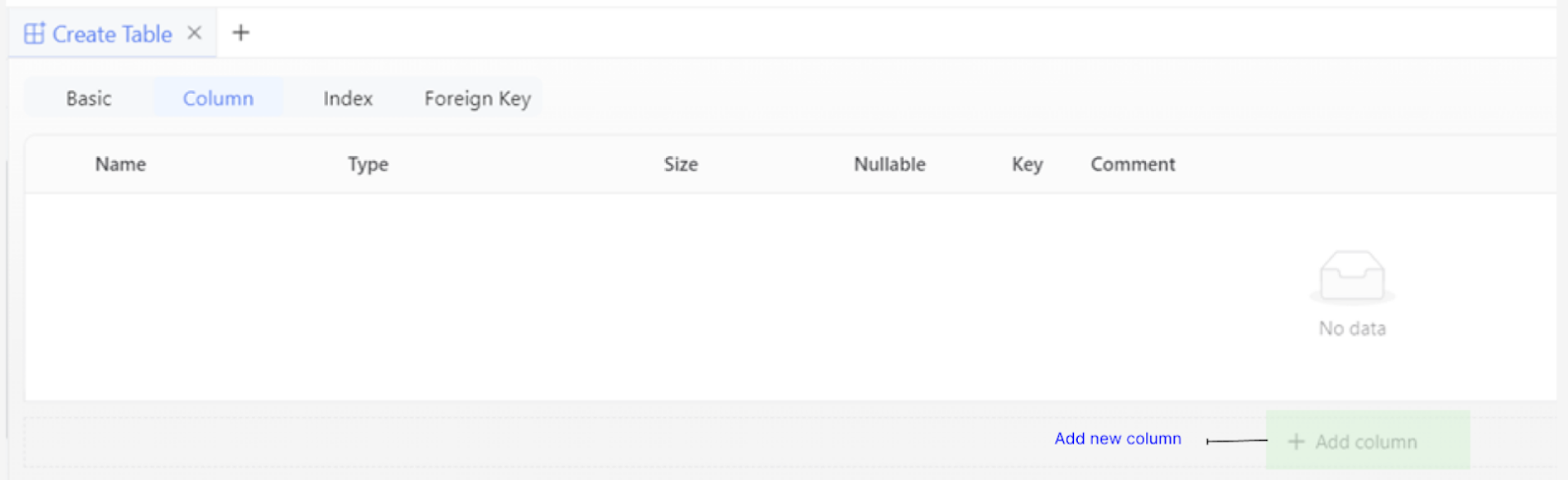

    2. Click the Add column button for each field to create.

      Add column button

    3. For each column, configure these properties:

      • Column Name: The name of the field (e.g., id, name, price, category).

      • Data Type: Select the appropriate type from the dropdown, such as SERIAL for an auto-incrementing integer, VARCHAR for text, or BYTEA for binary data like a PDF.

      • Size: Specify the size for variable-length data types like VARCHAR (e.g., 64).

      • Constraints: Apply rules to the column by checking the relevant boxes. The most common constraints are:

      • Key > Primary Key: Marks this column as the unique identifier for each row in the table.

      • Nullable: If unchecked, this field becomes mandatory and must always have a value.

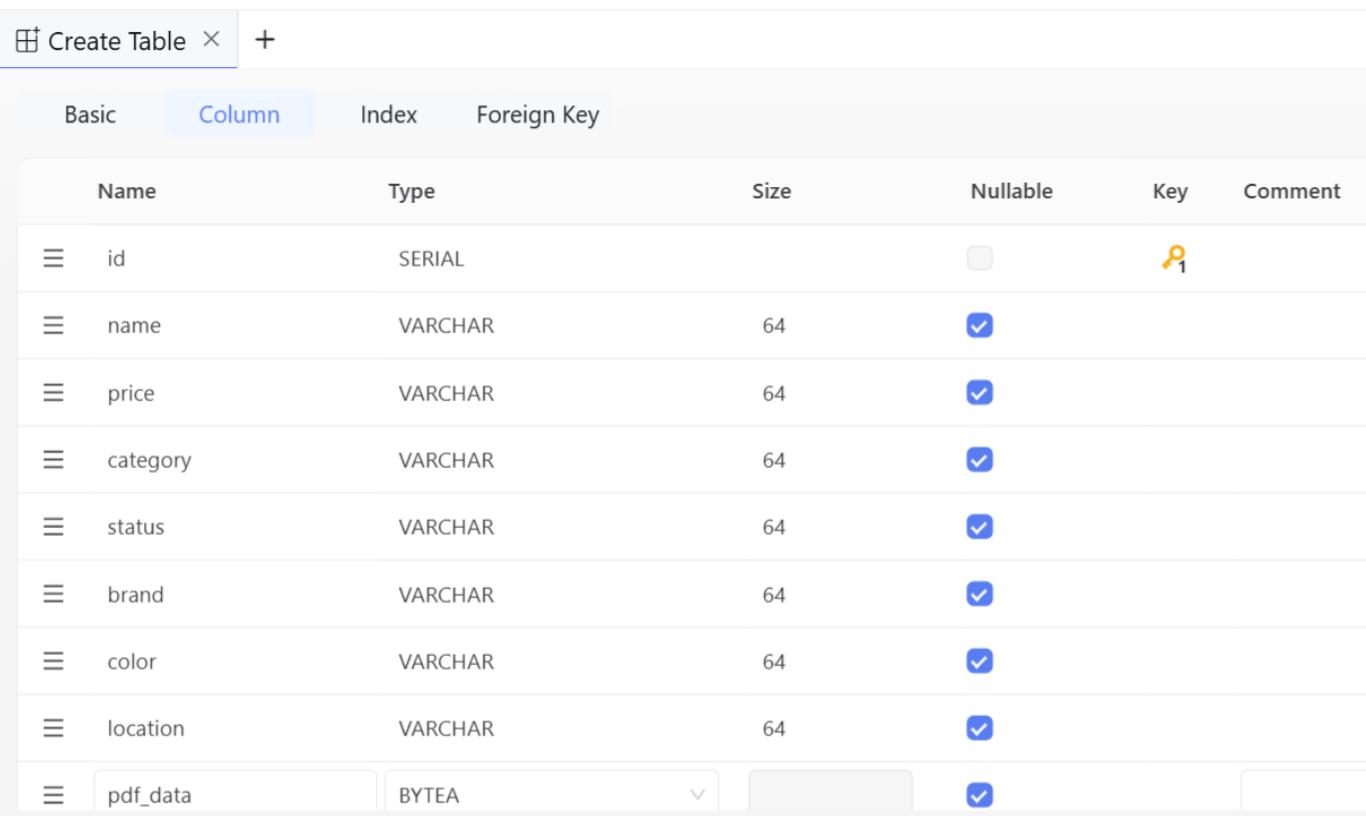

      Table column properties

  3. Execute the script and finalise

    KAIZEN provides a live SQL preview of the CREATE TABLE statement.

    1. After all the columns and constraints are defined, review the generated SQL script in the preview panel.

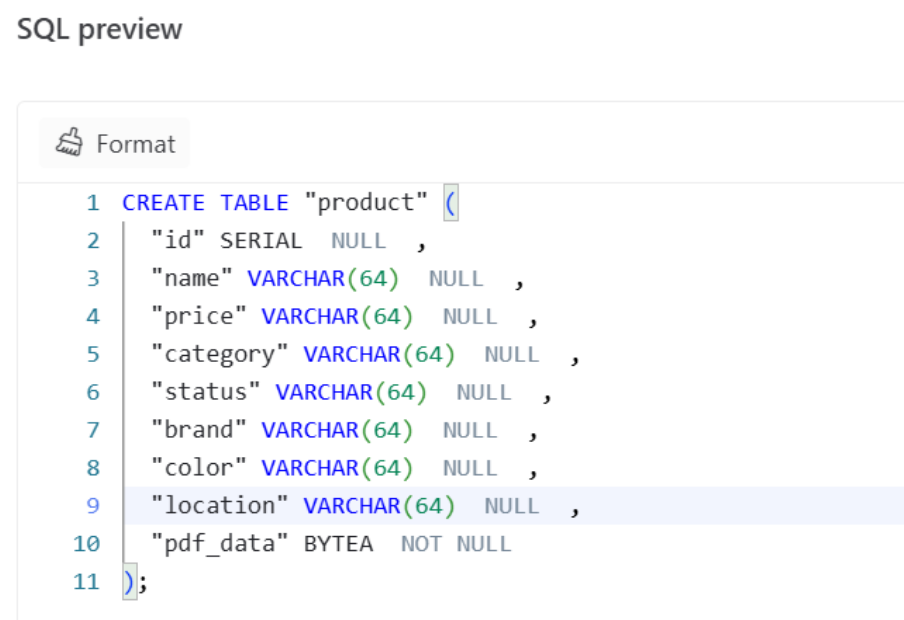

      SQL preview

    2. Click the Run button to execute the script. KAIZEN will create the physical table in the connected database.

      The new table will be listed under the Tables section.
