Data integration

Use a datasource to connect an application page to an API exposed by a KAIZEN service. This guide shows how to create GET and POST datasources in Service Designer, then make them available to a page in App Designer. The scholarship examples are for illustration purposes; you need to use the datasource IDs, endpoint, parameters, and page names that apply to your application.

Create a datasource in Service Designer

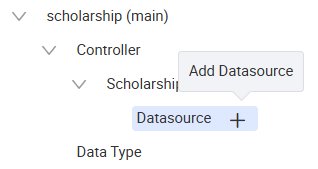

In Service Designer, select Add Datasource under the required controller. Configure the datasource to match the API endpoint that the application page needs to call.

Create a GET datasource

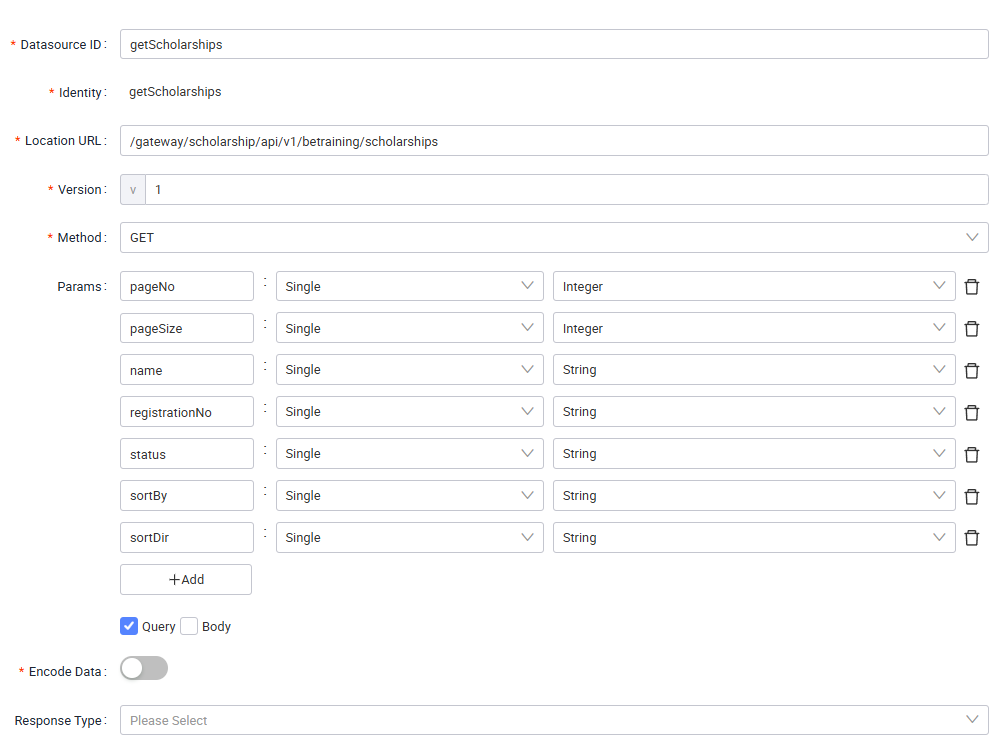

The following example retrieves a list of scholarship applications. Create a datasource with the following configuration.

Field	Value
Datasource ID	getScholarships
Identity	getScholarships
Location URL	/gateway/scholarship/api/v1/betraining/scholarships
Version	1
Method	GET
Params	pageNo, pageSize, name, registrationNo, status, sortBy, and sortDir Each is a single-value parameter. While pageNo and pageSize are Integer, others are String.
Query	Enabled
Encode Data	Disabled
Response Type	Default
Use Global Timeout	Enabled
Timeout (ms)	Default
Request Headers	Default
Add Function	Default

Click Apply to create the datasource.

note

For query and body parameters, choose Query when the API receives values as request parameters, which is typical for a GET request. Choose Body when the API receives a request body, which is typical for a POST request.

The location URL must use the internal gateway format /gateway/<service>/api/v1/..., where <service> is the target microservice name. Datasources currently support internal or self-hosted endpoints only; external API calls are not supported.

Create a POST datasource

Use a data type when a POST request sends a structured object.

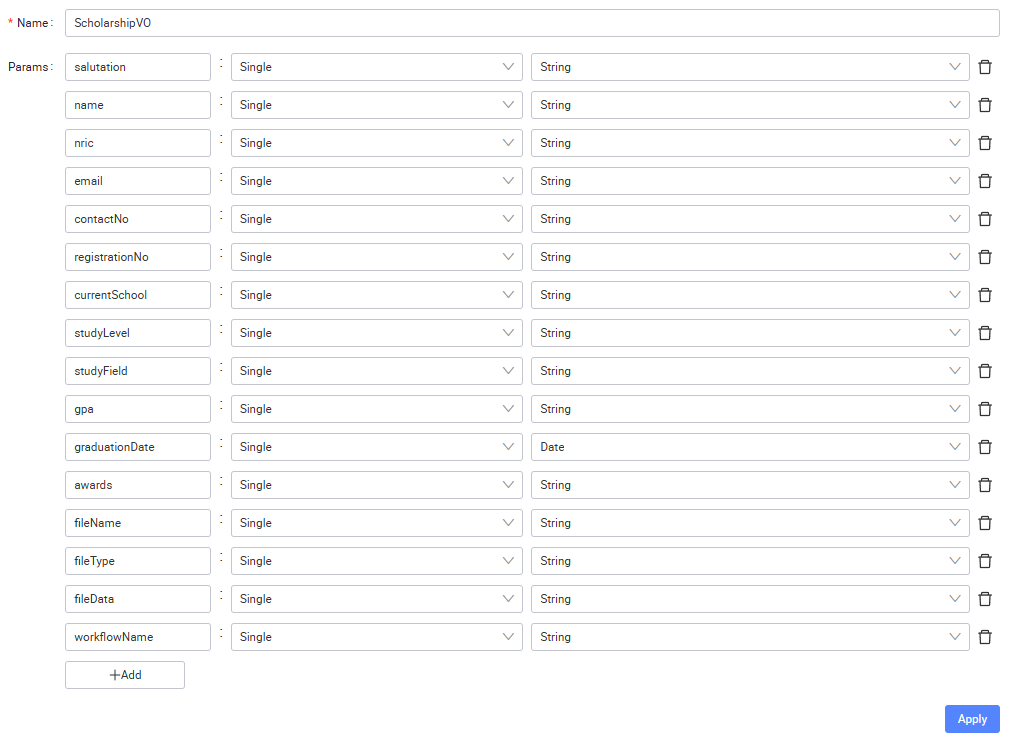

1. In Service API Designer, select Add Data Type and create a data type named ScholarshipVO. Add the fields required by the endpoint, for example salutation, name, nric, email, contactNo, registrationNo, currentSchool, studyLevel, studyField, gpa, graduationDate, awards, fileName, fileType, fileData, and workflowName.

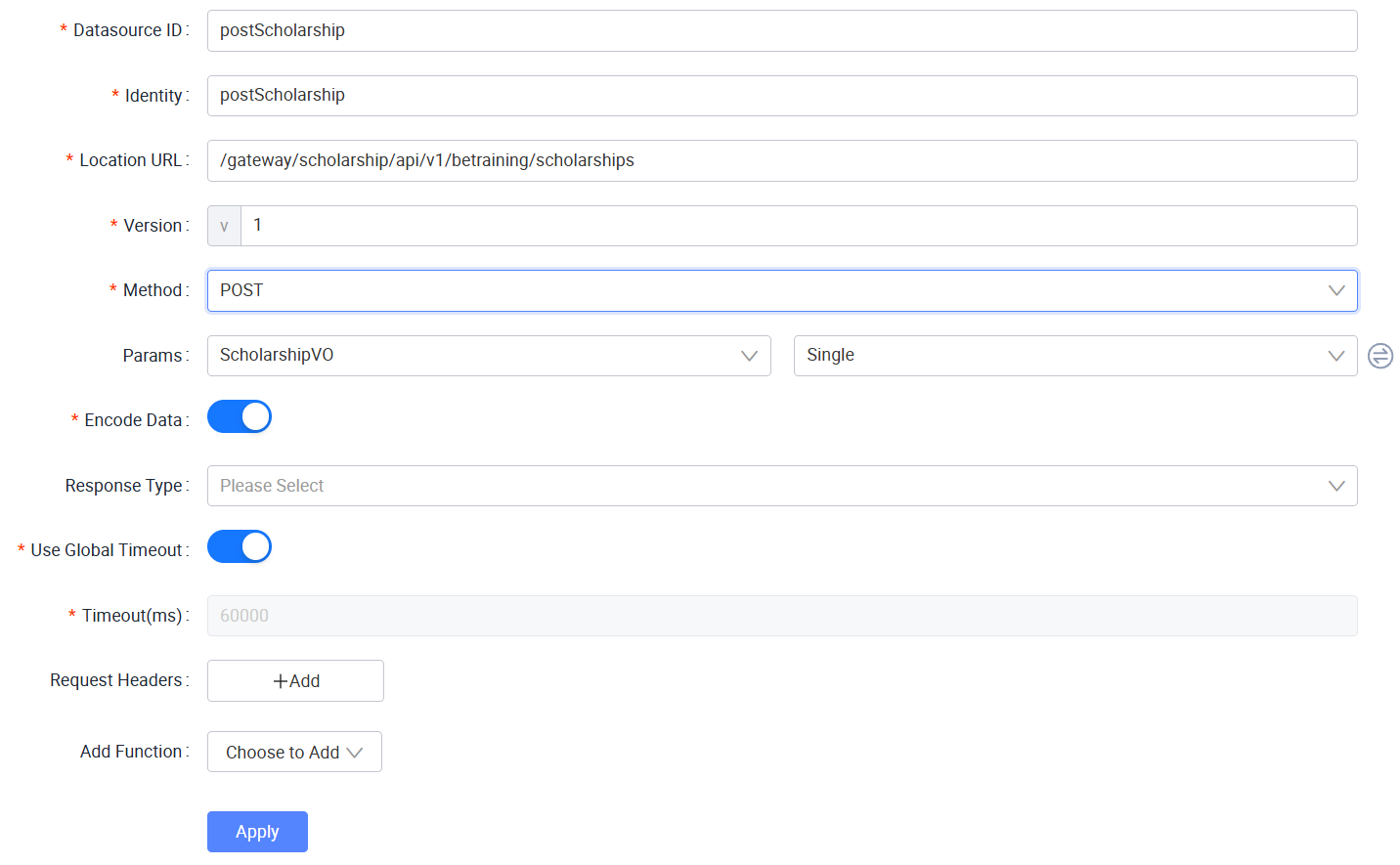

2. Select Add Datasource under the controller and configure the POST datasource.

   Field	Value
   Datasource ID	postScholarship
   Identity	postScholarship
   Location URL	/gateway/scholarship/api/v1/betraining/scholarships
   Version	1
   Method	POST
   Params	ScholarshipVO as a single-value parameter
   Encode Data	Disabled
   Response Type	Default
   Use Global Timeout	Enabled
   Timeout (ms)	Default
   Request Headers	Content-Type: application/json
   Add Function	Default

3. To be able to select the ScholarshipVO parameter, click Switch Mode in the Params section. Click Apply when the configuration is complete.



Add the datasource in App Designer

After the datasource is created in Service Designer, add it to the page that will call the API.

Add the GET datasource to a listing page

1. For a page that displays scholarship results, for example StaListingTable, select Datasource, then click Create. Search for getScholarships, select it, and click Next.

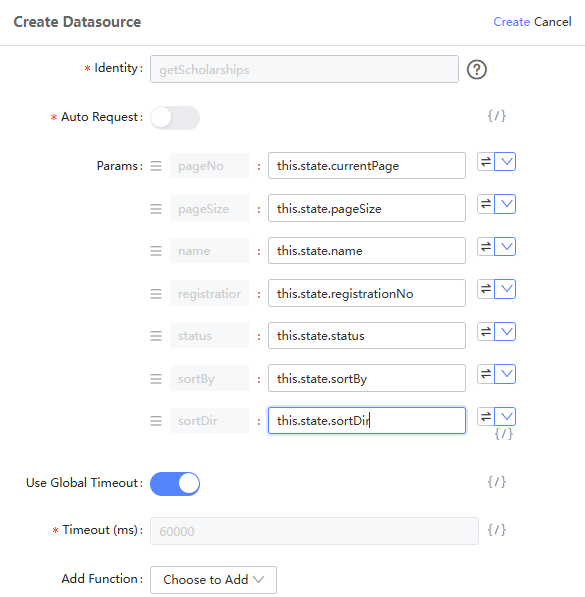

2. In the Create Datasource window, map the datasource parameters to the page state.

   Parameter	Value
   pageNo	this.state.currentPage
   pageSize	this.state.pageSize
   name	this.state.name
   registrationNo	this.state.registrationNo
   status	this.state.status
   sortBy	this.state.sortBy
   sortDir	this.state.sortDir

3. Click Create. The page can now use the datasource to retrieve a filtered, sorted, and paginated list from the service.



4. Save the draft and click Preview to verify the integration. For a GET datasource, confirm that the page loads the expected data and that filtering, sorting, and pagination work.

Add the POST datasource to a form page

1. For a page that contains the scholarship application form, for example StuFormPage, select Datasource, then click Create. Search for postScholarship, select it, and choose Next.

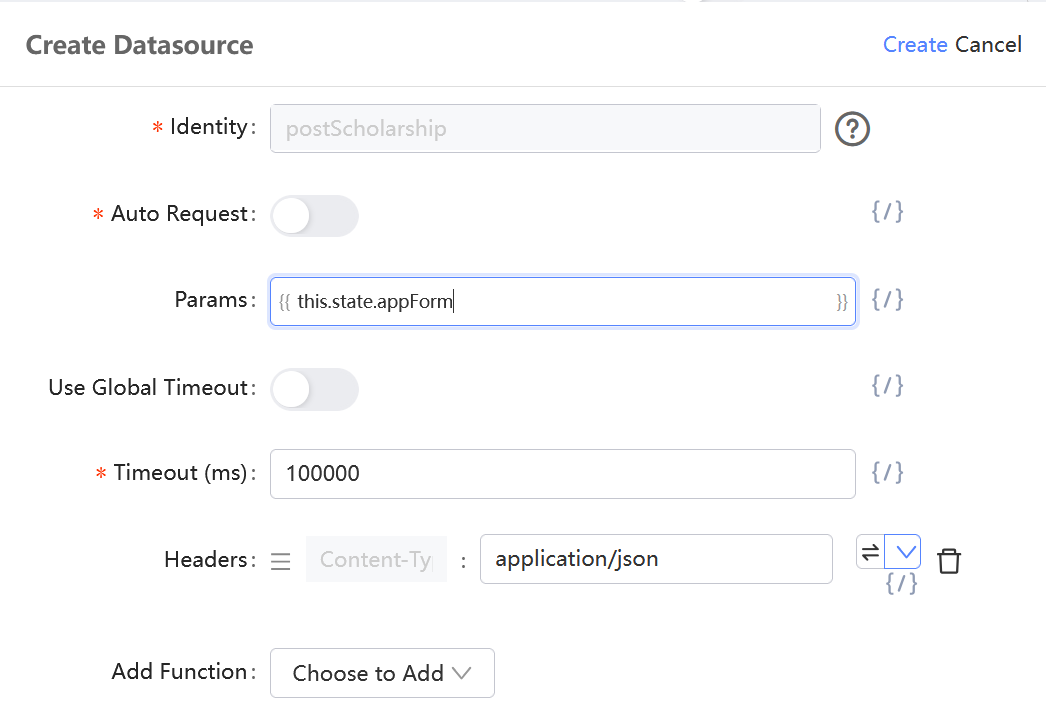

2. In the Create Datasource window, select the expression icon beside Params and enter the form state as a JavaScript expression:

   this.state.appForm

   This passes the application form object as the ScholarshipVO request body instead of mapping each field individually.

   • Disable Use Global Timeout.
   • Set Timeout (ms) to 100000.
   • Enter application/json to the Headers field, then click Create.


3. Save the draft and click Preview to verify the integration. For a POST datasource, submit the form and confirm that the request completes successfully.

By defining datasources in Service Designer and binding them to the appropriate App Designer pages, you can connect application interfaces to backend services with minimal custom code. Reuse this pattern for other GET requests, form submissions, and service endpoints in your application.
